Wayon维安1140贴片保险丝

全新包装/正品保证/优选品牌/售后无忧

产品名称：Wayon维安1140贴片保险丝

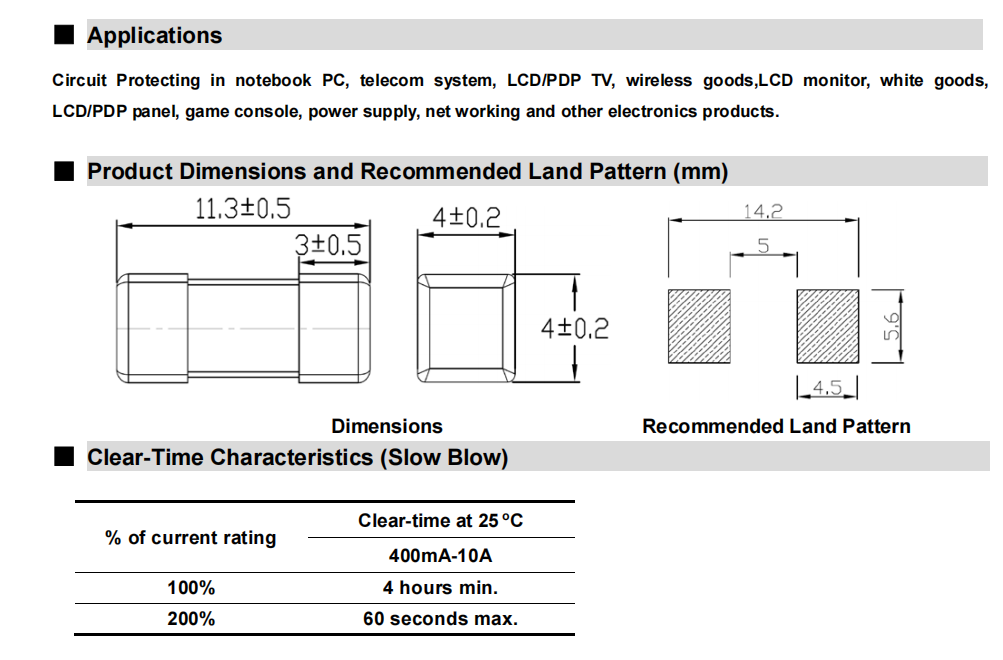

产品尺寸：1140

代理品牌：Wayon维安

产品封装：SMD封装

交期时间：现货一般当天交货，具体需电话详情.

发货货仓：深圳/香港/上海/苏州

热门标签：1140贴片保险丝规格书，1140贴片保险丝原理图

咨询热线：在线咨询

资料下载：Wayon维安1140贴片保险丝规格书

产品概况产品特点相关下载

 Main Characteristics SMD fuse; Fast Acting(F);1140 Designed to UL E311435

 Materials Body: Ceramic End Caps: Copper plated with silver

 Environment Standard Lead-free, Halogen-free, RoHS

 Vibration Resistance 10-60Hz at 0.75mm amplitude 60-2000Hz at 10g acceleration

 Stock Temperature +10℃ to +60℃ Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%

 Operating temperature: -55°C to +125°C (with de-rating)

零件编号	额定电流(A)	额定电压 (V)DC	保险丝 DCR(mΩ)	破坏(A)	数据表

1140WNF1000A250V	10	125	7.0	150
1140WNF800A250V	8.0	125	8.61	150
1140WNF630A250V	6.3	125	12	150
1140WNF500A250V	5.0	250	15.4	150
1140WNF400A250V	4.0	250	22.7	150
1140WNF315A400V	3.15	400	31	100
1140WNF250A400V	2.5	400	40.2	100
1140WNF200A400V	2.0	400	52.4	100
1140WNF160A400V	1.6	400	71.35	100
1140WNF125A400V	1.25	400	106.1	100
1140WNF100A400V	1.0	400	147	100
1140WNF080A400V	0.8	400	418	100
