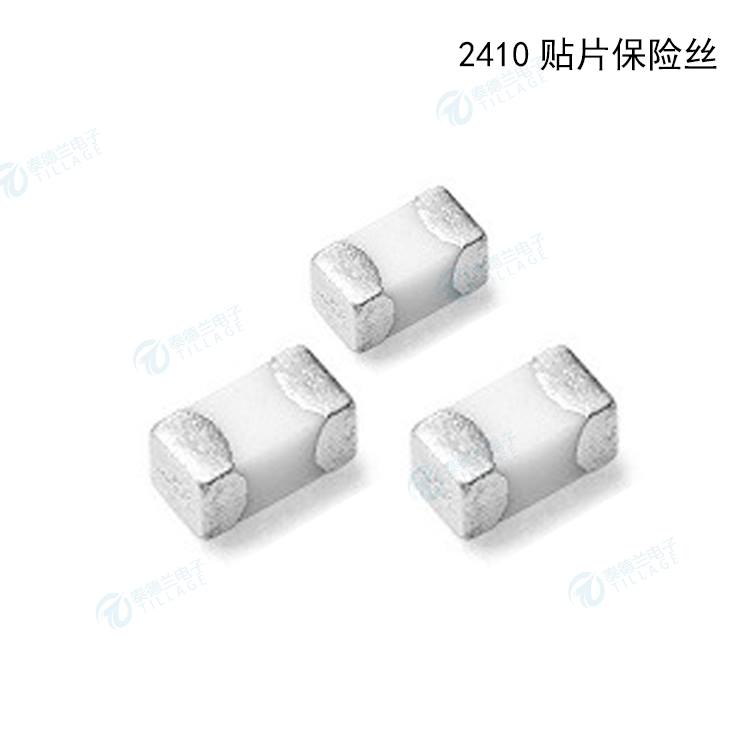

Wayon维安2410贴片保险丝

全新包装/正品保证/优选品牌/售后无忧

产品名称：Wayon维安2410贴片保险丝

产品尺寸：2410

代理品牌：Wayon维安

产品封装：SMD封装

交期时间：现货一般当天交货，具体需电话详情.

发货货仓：深圳/香港/上海/苏州

热门标签：2410贴片保险丝规格书，2410贴片保险丝原理图

咨询热线：在线咨询

资料下载：Wayon维安2410贴片保险丝规格书

产品概况产品特点相关下载

 Main Characteristics SMD fuse; Fast Acting(F);2410 Designed to UL E311435
 Materials Body: Ceramic End Caps: Copper plated with silver
 Environment Standard Lead-free, Halogen-free, RoHS 2410WLF series （Rev:C） SMD chip fuse
 Vibration Resistance 10-60Hz at 0.75mm amplitude 60-2000Hz at 10g acceleration
 Stock Temperature +10℃ to +60℃ Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%
 Operating temperature: -55°C to +125°C (with de-rating)

零件编号	额定电流(A)	额定电压 (V)DC	保险丝 DCR(mΩ)	破坏(A)	数据表

2410WLF4000A063V	40	63	0.9	500
2410WLF3000A072V	30	72	1.04	500
2410WLF2500A072V	25	72	1.53	500
2410WLF2000A072V	20	72	1.98	500
2410WSF150A125V	1.5	125	144	50
2410WSF100A125V	1.0	125	247	50
2410WSF080A125V	0.8	125	341	50
2410WSF075A125V	0.75	125	401	50
2410WSF050A125V	0.5	125	743	50
2410WSF037A125V	0.375	125	393	50
2410WSF031A125V	0.315	125	516	50
2410WSF025A125V	0.25	125	742	50
